Easily automate your sliding gate with this user-friendly kit featuring a 450W motor. It’s perfect for home projects, supporting gates up to 1200kg with features like wireless remote control and adjustable auto-close for added convenience and safety.
- 450W motor with max. weight capacity of 1800kg; recommended for gates up to 1200kg
- Smooth and ultra-quiet opening and closing operation
- Includes 2 wireless remote controls with reliable rolling code technology
- Built-in adjustable auto-close system with pedestrian and midway modes
- Emergency manual release key for safety
- Built-in motor running limitation and electromagnetism limit for easy adjustment
- Quick selection for open/close direction
- Adjustable screw thread flute to accommodate different door thickness
- Suitable for maintaining existing sliding gates or new installations
- Ideal for home DIY projects and renovations

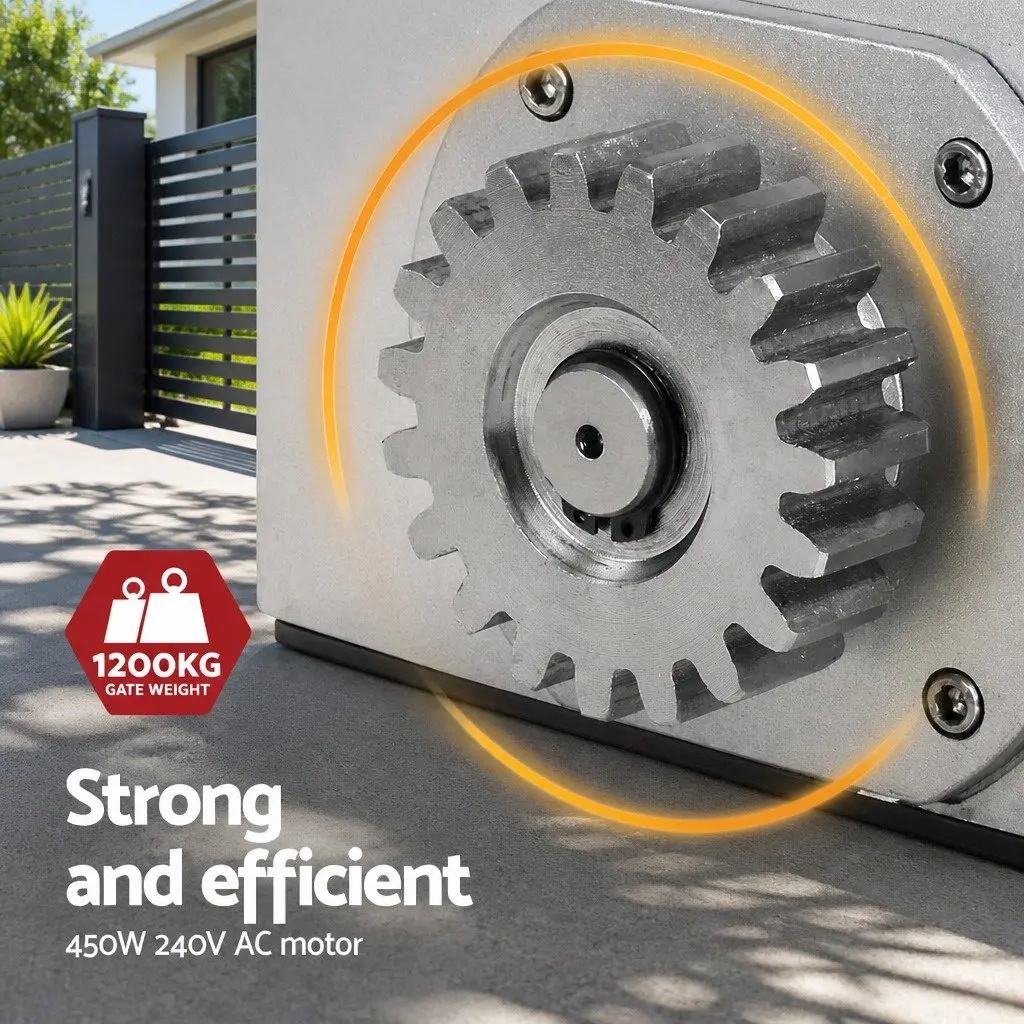

- Motor: 230V AC
- Power: 450W
- Material: Galvanised steel
- Max. weight capacity: 1800kg
- Recommended gate capacity: 1200kg
- Gate moving speed: approx. 12m/min
- Max. pulling force: 160N
- Max. torque: 28Nm
- Protection class: IP44
- Rail dimension: approx. 4 x 1m (4 pieces)
- Unit dimension: approx. 29 x 29 x 15cm
- Remote control battery: Alkaline zinc manganese battery 12V 27A
- Assembly required
- Colour: White

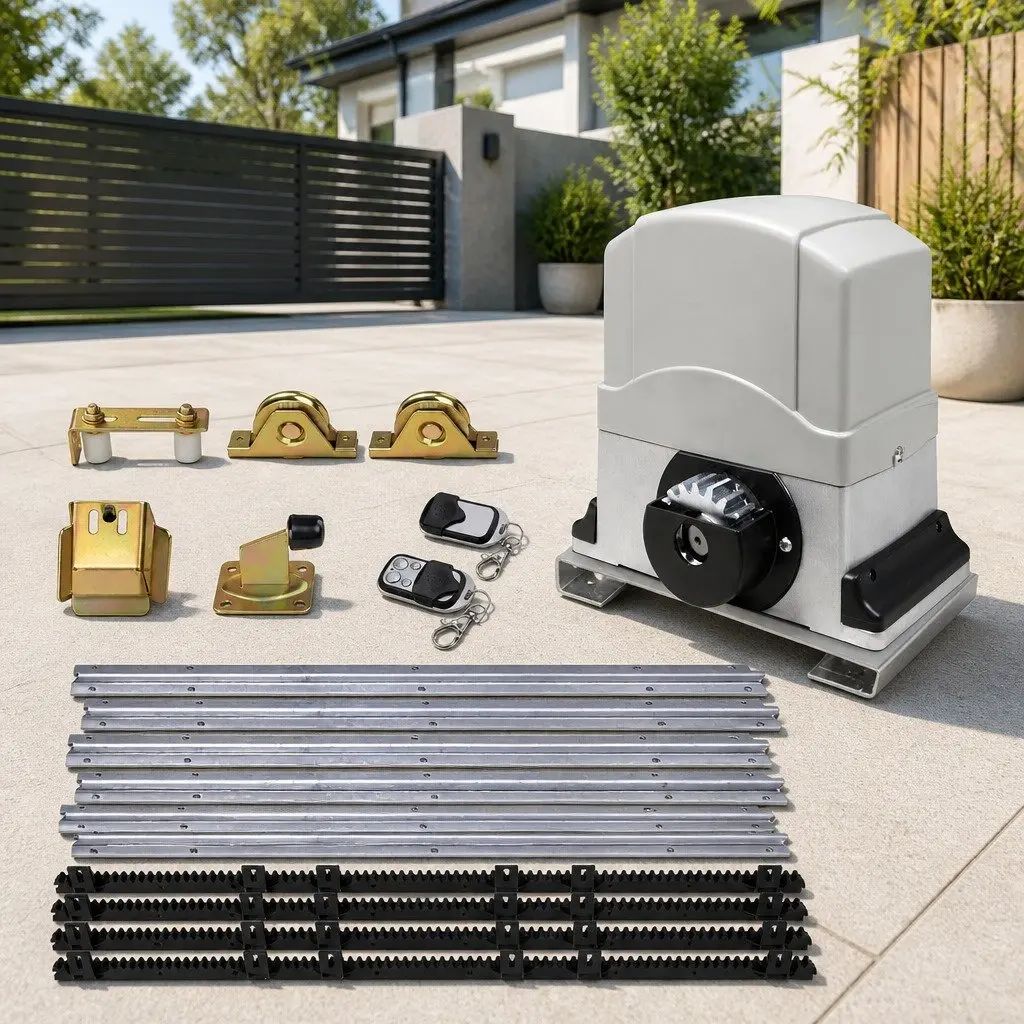

- 450W Motor x1

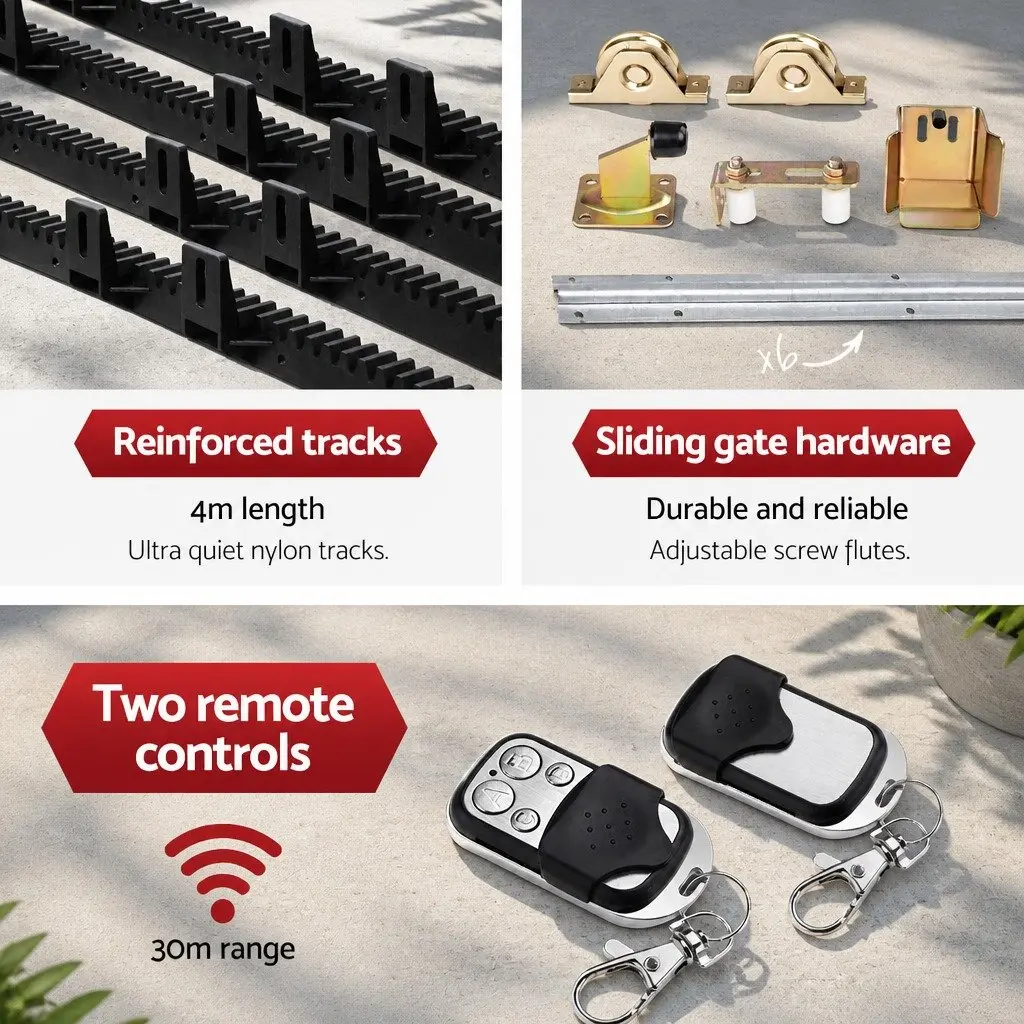

- 1M Rail x4
- Remote Control x2
- Standard Accessories x1 Set
- User Manual x1

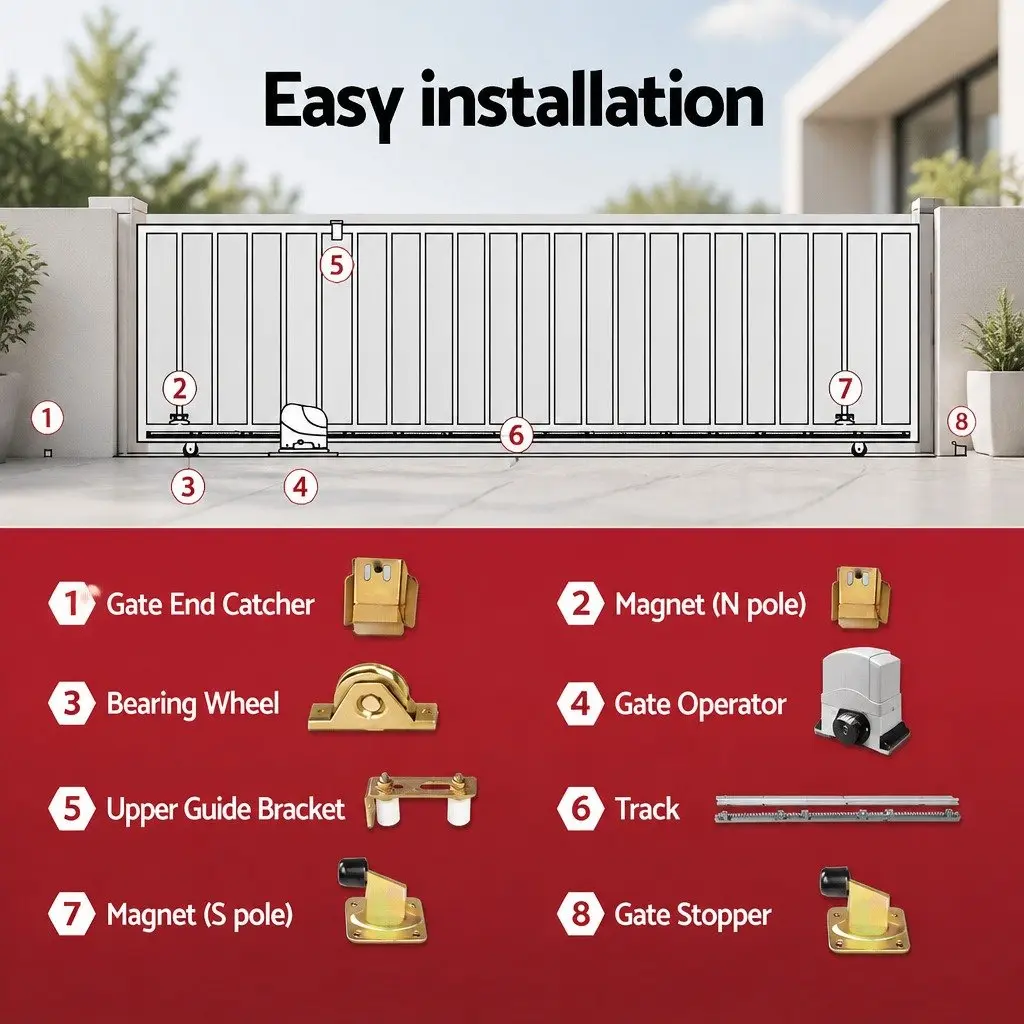

- Gate Stopper x1
- 1M U Groove Galvanised Ground Track x6
- Upper Guide Bracket with 2 Nylon Rollers x1
- 90mm U Groove Bearing Wheels x2
- Gate End Stop/Catcher (93mm Opening) x1
